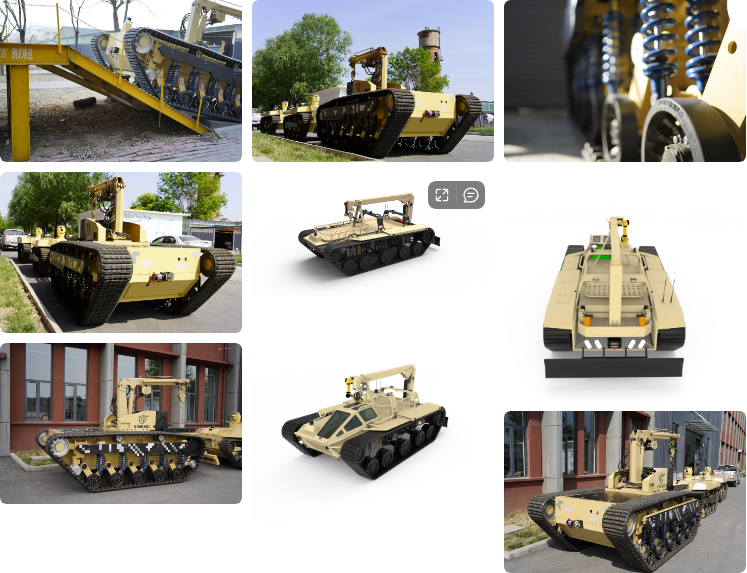

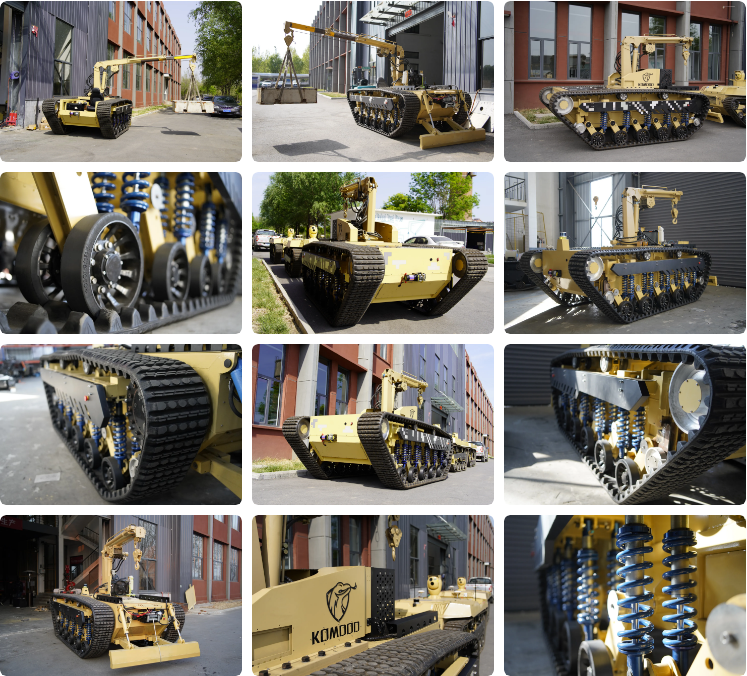

Parameters:

1. Main Technical Parameters of Mechanical Part:

Index

Parameter

Index

Parameter

Design Dimensions (mm)

Length × Width × Height

(Without Industrial Design Dimensions)

3690±30 (Tensioned)*

1940±10 × 1200±50 (Depends on Load and Shock Absorber Pressure)

Dimensions with Industrial Design Shell (mm)

4205×2066×2700

Ground Clearance

Flat Bottom 320mm±50

(Depends on Load and Shock Absorber Pressure)

Belt Width

380mm

Chassis Dead Weight

2500KG

Rated Load Capacity

2500KG

(Including Battery and Mechanical Arm)

Rated Power

55KW×2

Operating Speed

15Km/h

Reducer Gear Ratio

22.4

Maximum Obstacle Climbing

600mm

Maximum Climbing Slope

30 Degrees

Maximum Span

1200mm

Drive Battery

DC 540V 100Ah

Protection Grade

IP54


2. Main Technical Parameters of Electrical Part:

Power Supply Voltage

DC540V

Motor Selection

Brushless DC Motor

Whole Machine Power (max)

110KW

Standby Power Consumption

≤200w

Remote Control Distance

800m (Visual Line of Sight)

Number of Remote Control Channels

9T

3. Power Supply Configuration:

a. Main Battery: DC 540V 100Ah drive battery;

b. Secondary Battery: DC 48V 120Ah control battery, maximum voltage 54.6V, cut-off discharge voltage 46.8V;

Note: Use a dedicated battery charger for battery charging. Battery failure caused by over-discharging is not covered by the warranty.

c. Driver operating temperature: -20°C ~ +60°C, humidity ≤80RH.

Note: Ensure the driver's operating environment. Drive problems caused by unsatisfactory environmental conditions are not covered by the warranty.

d. Main relay coil voltage: 12V, main contact overcurrent: 100A, normal operating temperature rise: 60°C - 80°C.
